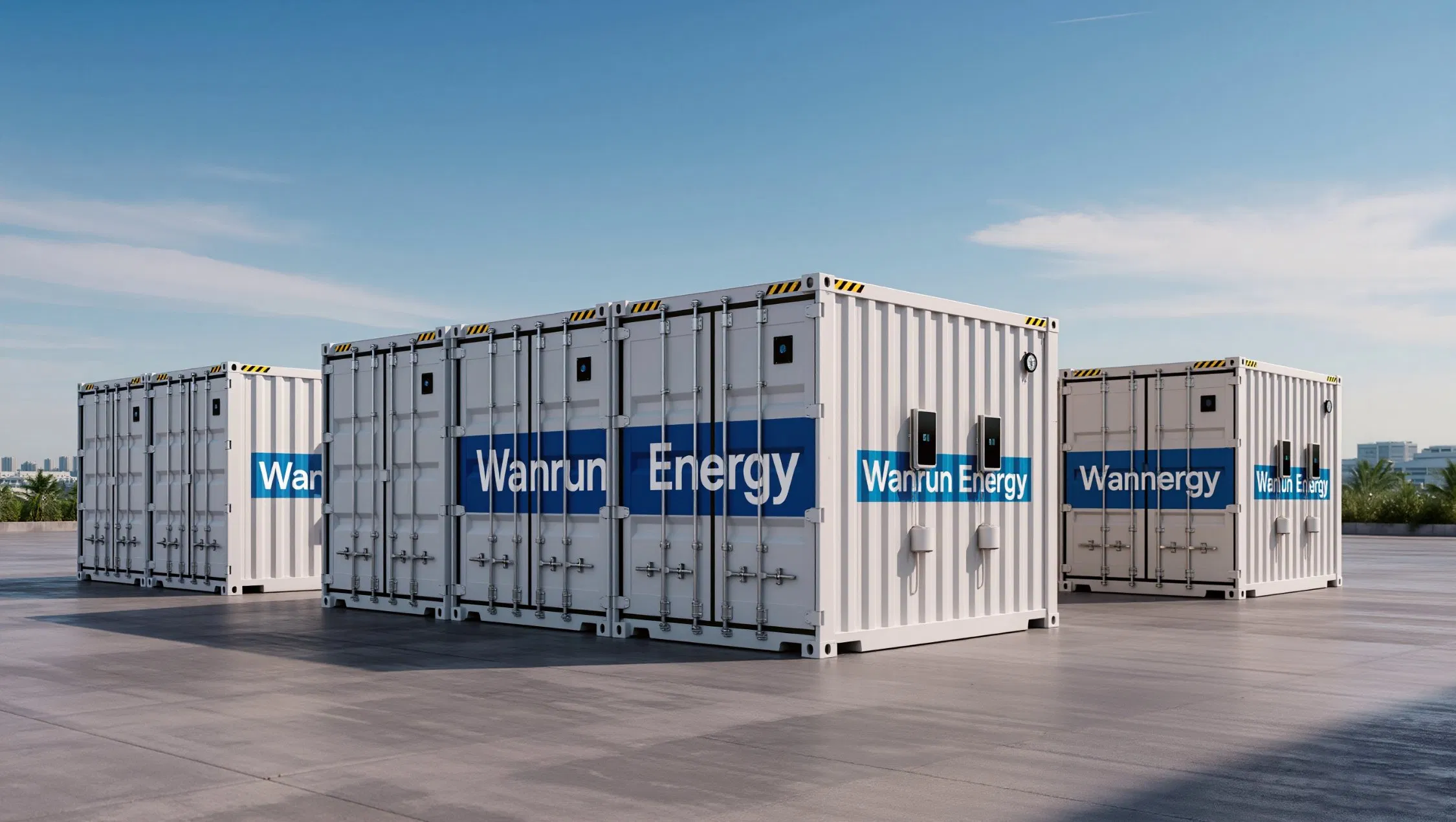

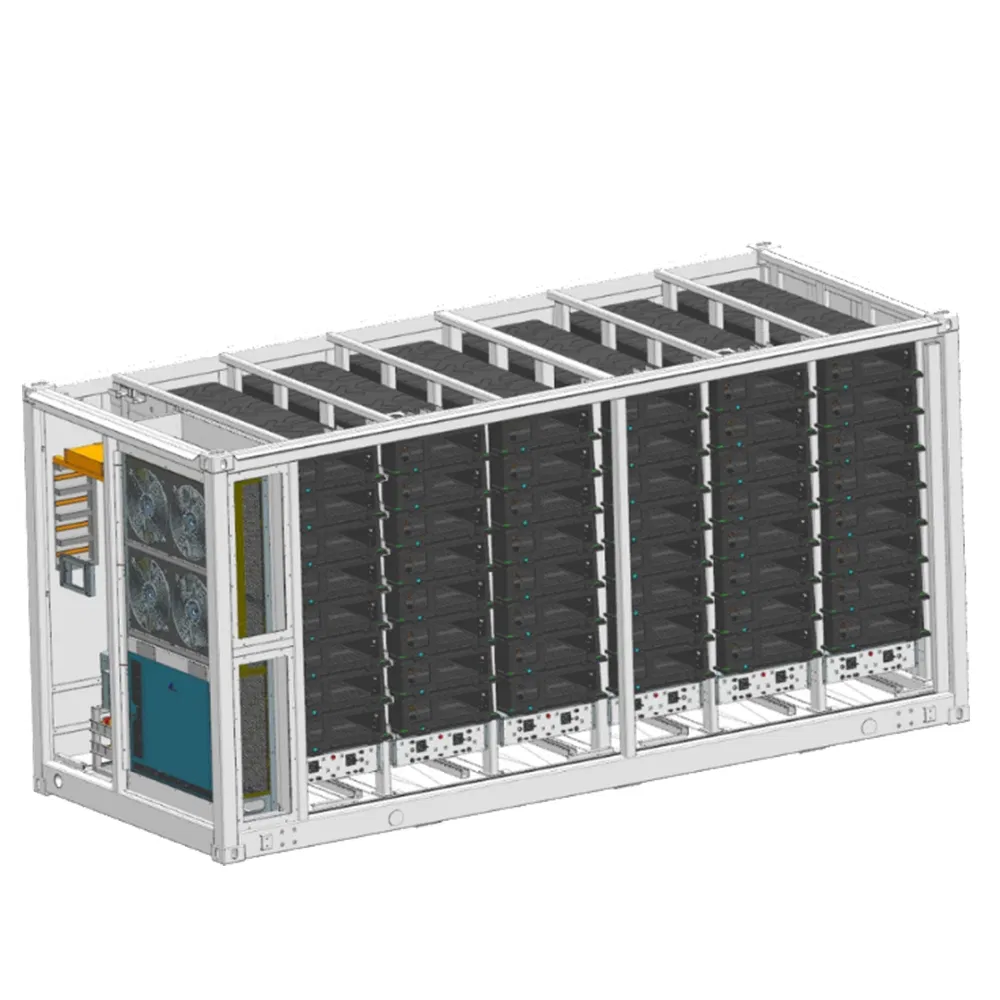

Industrial Energy Storage 5mwh LiFePO Container Energy Storage
Industrial Energy Storage 5mwh LiFePO Container Energy Storage
1 / 2
Industrial Energy Storage 5mwh LiFePO Container Energy Storage
Industrial Energy Storage 5mwh LiFePO Container Energy Storage

Industrial Energy Storage 5mwh LiFePO Container Energy Storage

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Standard Container (20ft/40ft)
Send Inquiry

Product Description

⚡ Basic Information

Model NO.
WR-ESS-C5015
Energy Capacity
Above 5MWh
Power Configuration
Above 500kW
Cycle Life
8000 Cycles (80%DOD)
Cooling Method
Full Liquid Cooling (Temp Difference ≤3℃)
IP Grade
55
Specification
6058mm * 2438mm * 2896mm
Origin
China

📦 Product Description

5.015MWh Liquid-Cooled Container Specifications
Product ModelWR-ESS-C5015
Product TypeLithium iron phosphate battery system
Rated Power5.015MWh
Rated Voltage1331.2V DC
Voltage Range1164.8~1497.6V DC
Rated Charge/Discharge2.5MW / 2.5MW
Operating Temp-20℃ ~ +60℃
Dimensions6058mm(L) * 2438mm(W) * 2896mm(H)
Weight≈40t
ProtocolsPCS: CAN/RS485; EMS: IEC61850
Industrial Energy Storage Container

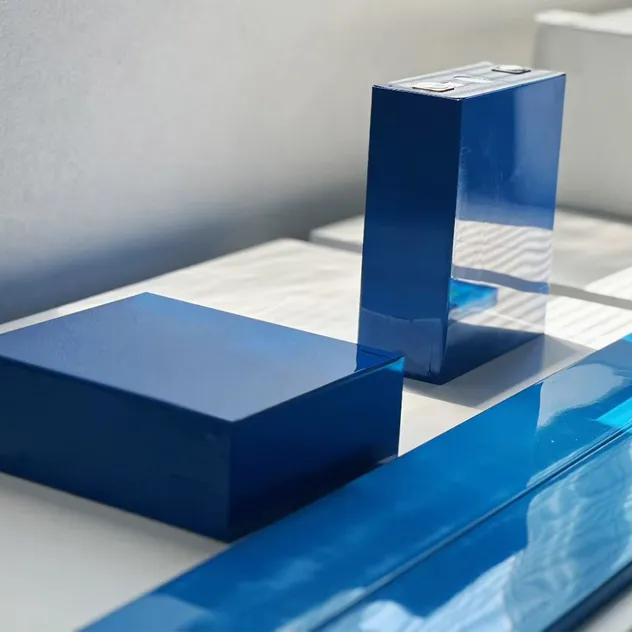

LiFePO Container Energy Storage

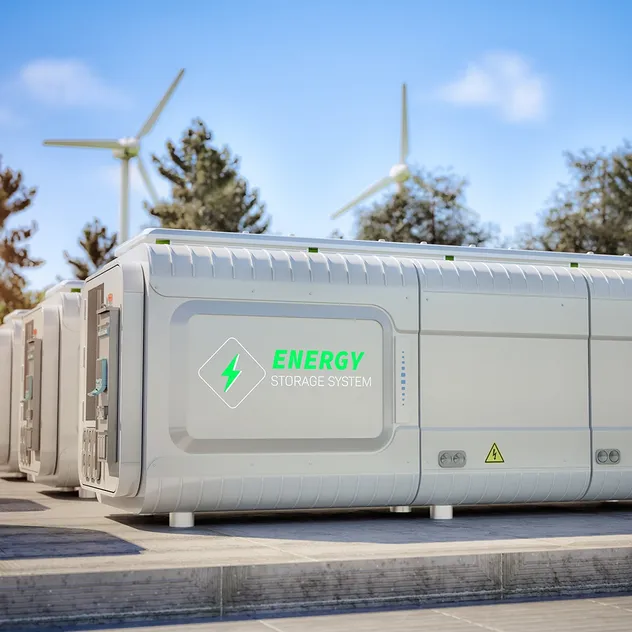

Energy Storage System Detail

🌍 Full Energy Ecosystem

⛏️
Mining & Raw Materials
Global investment and operation of mining projects for key lithium, nickel, cobalt, and manganese resources. Upstream control ensures a stable, traceable, and sustainable supply.
⚗️
Cathode Material - Battery Production
Specializing in R&D and large-scale production of high-nickel, LFP, and ternary materials. Vertically integrated production results in high-energy-density cells optimized for safety and efficiency.
🔋
Energy Storage Systems
Covering the full ecosystem: Mining → Cathode Materials → Battery Production → Energy Storage Systems. Complete integration ensures maximum reliability and performance.
Global Warehousing Network

🏠 Global Network & Quality

🌐
Global Offices & Warehousing Network
Operating 15 global warehouses strategically located in Europe, North America, Asia-Pacific, the Middle East, and Africa. Localized service and storage hubs bring cutting-edge solutions closer to customers.
📜
Certifications & Quality Assurance
Ensuring the highest quality and safety through certifications such as IEC 62619, UL 1973, and CE. Providing 10-15 year warranties for reliable and durable energy solutions.
Certification 1
Certification 2

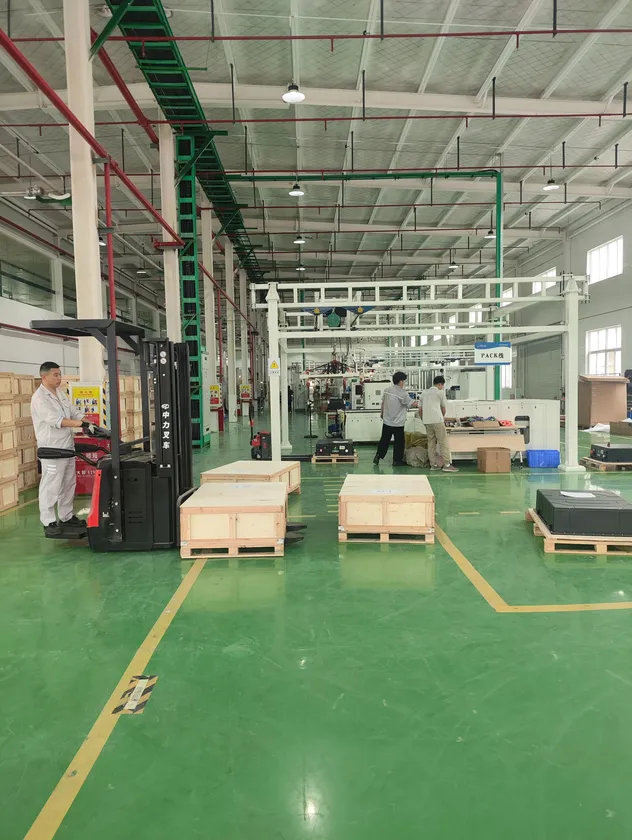

Certification 3

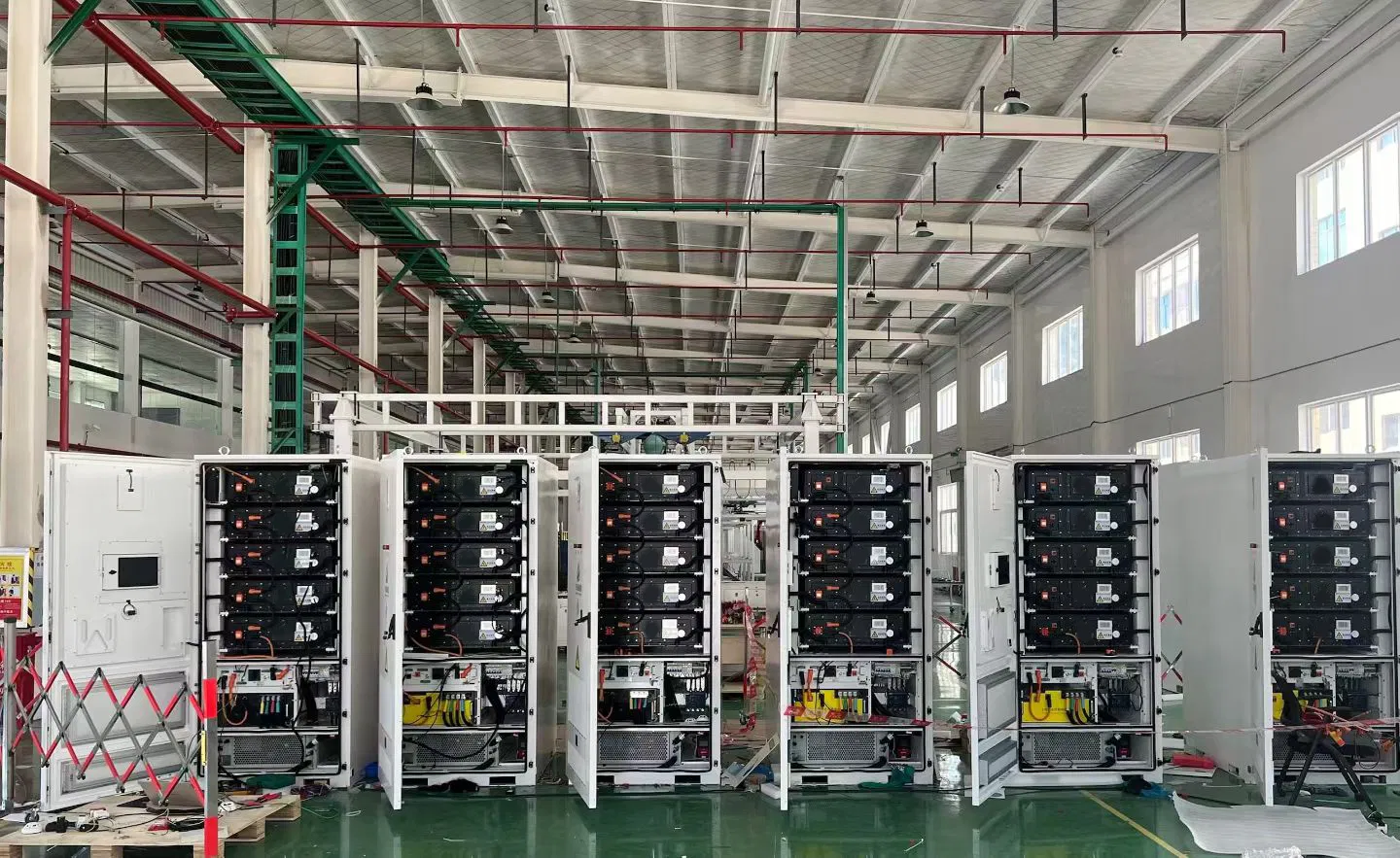

Infrastructure Overview

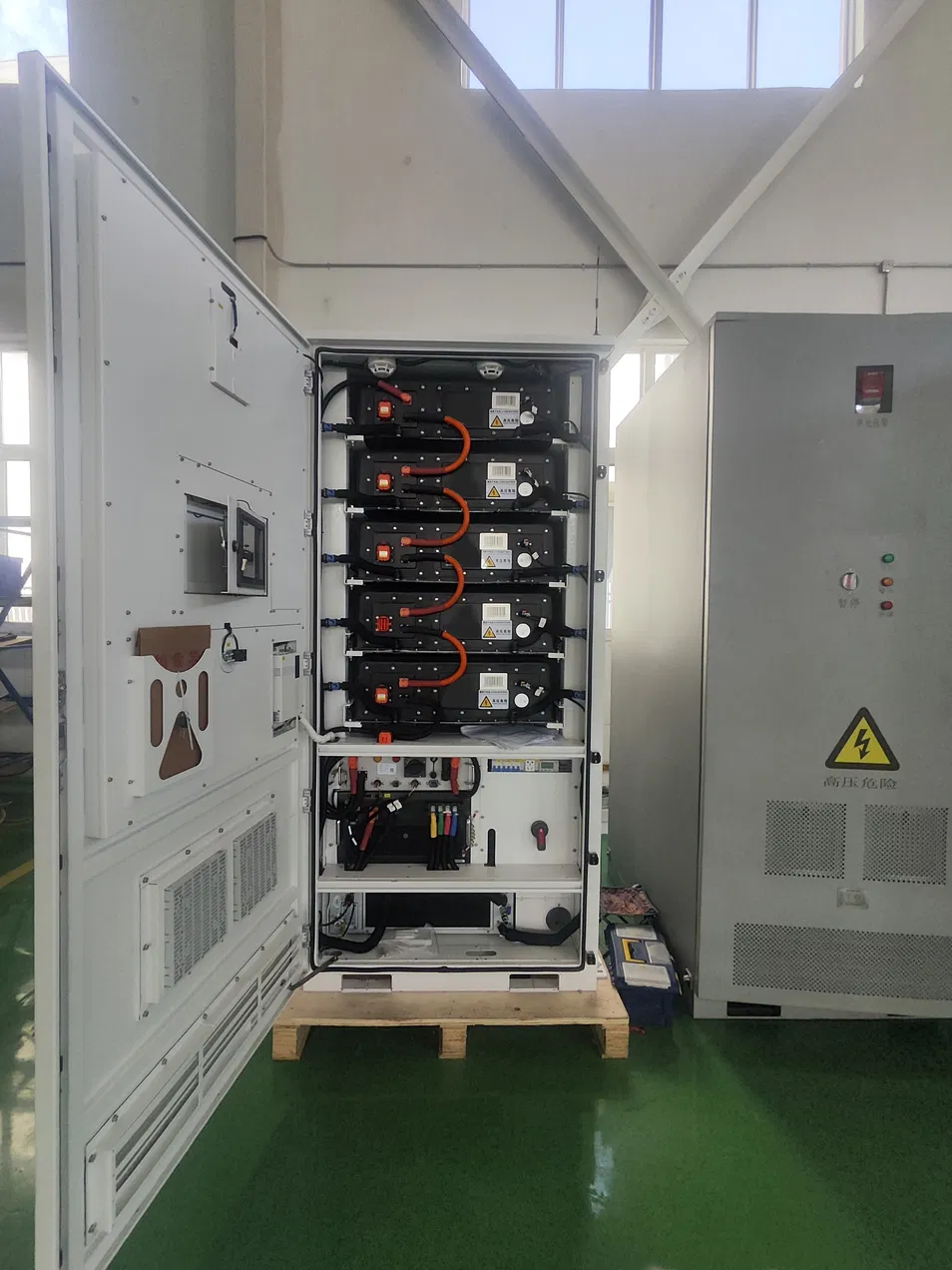

Battery Cell View

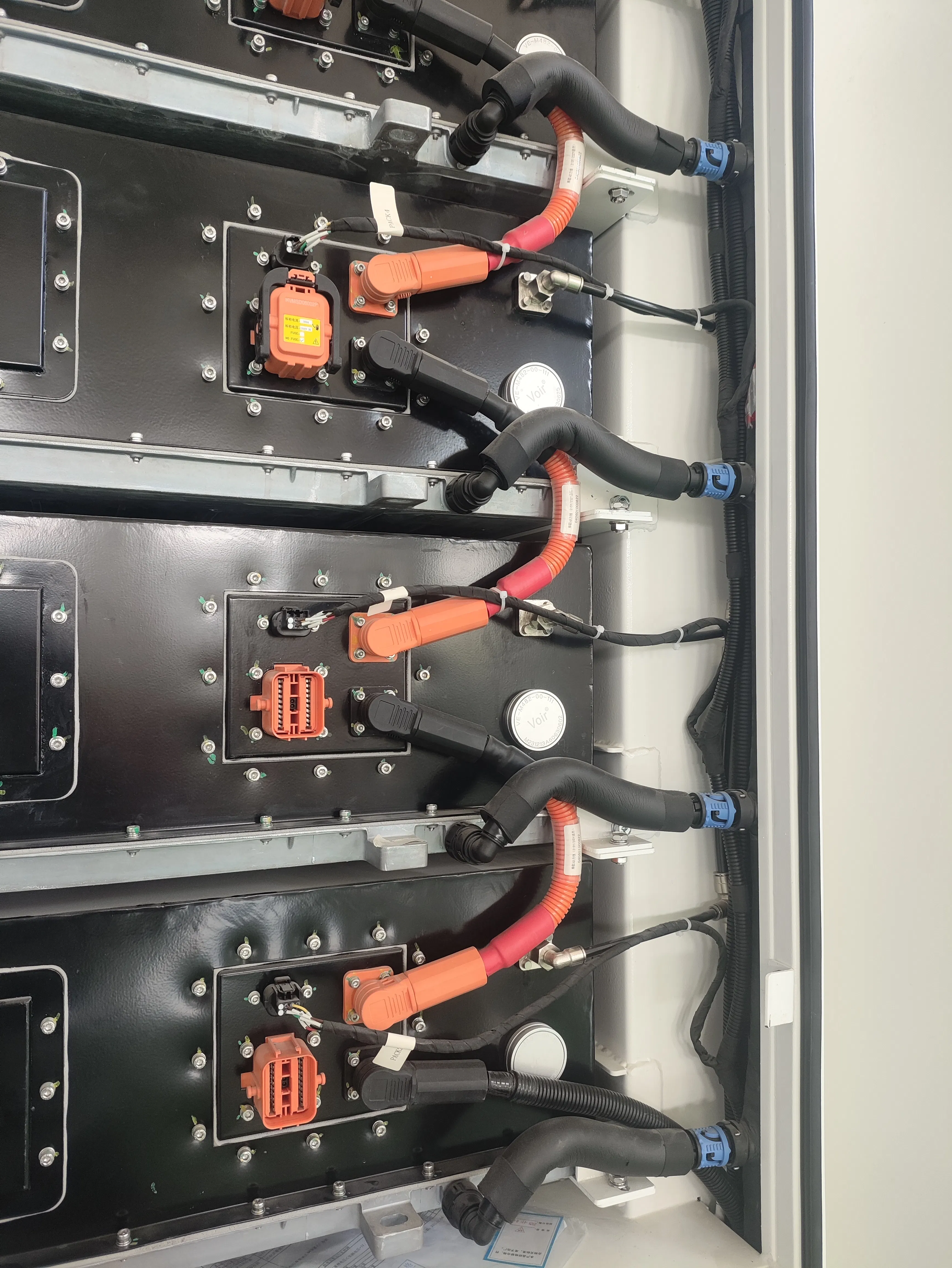

Module View

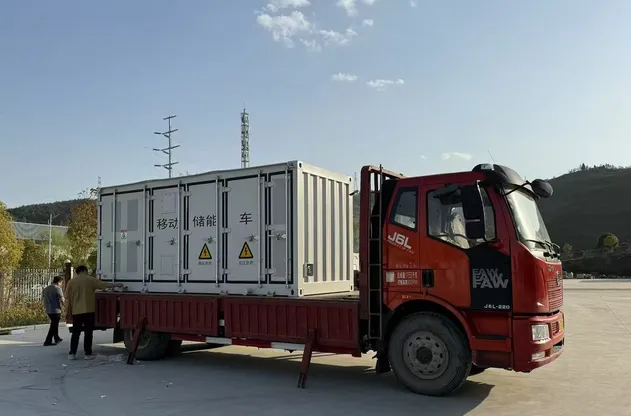

Installation Site 1

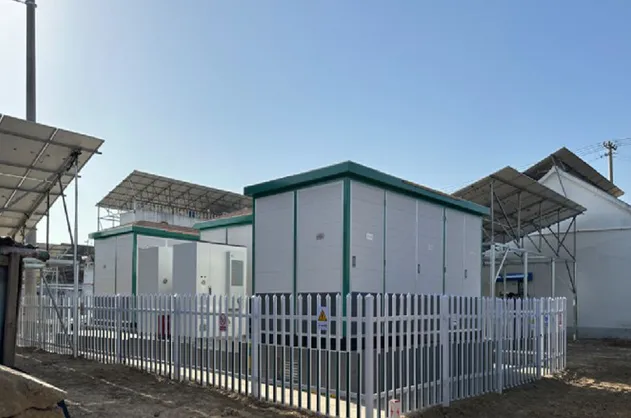

Installation Site 2

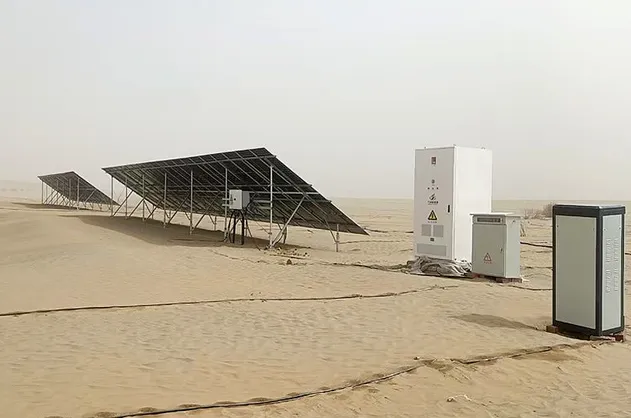

Installation Site 3

❓ Frequently Asked Questions

1. What is the total energy capacity of the WR-ESS-C5015 system?
The WR-ESS-C5015 offers a high-rated energy capacity of 5.015MWh, specifically designed for large-scale industrial and utility energy storage.
2. How does the liquid cooling system benefit the battery life?
The full liquid cooling system maintains a temperature difference of ≤3℃ throughout the container. This uniform thermal management significantly reduces battery degradation and enhances safety.
3. What is the expected cycle life of this energy storage system?
The system is rated for 8000 cycles at 80% Depth of Discharge (DOD), ensuring long-term operational stability for over a decade.
4. Can this container be installed in high-altitude regions?
Yes, it is suitable for altitudes up to 2000 meters. For applications above 2000 meters, it can still be used at a reduced capacity.
5. What safety certifications does the product meet?
The system meets international safety and quality standards, including IEC 62619, UL 1973, and CE certifications, with an IP55 protection rating.
6. What communication protocols are supported?
The system supports CAN and RS485 protocols for PCS communication, and IEC61850 for EMS integration, allowing for seamless smart grid connectivity.
